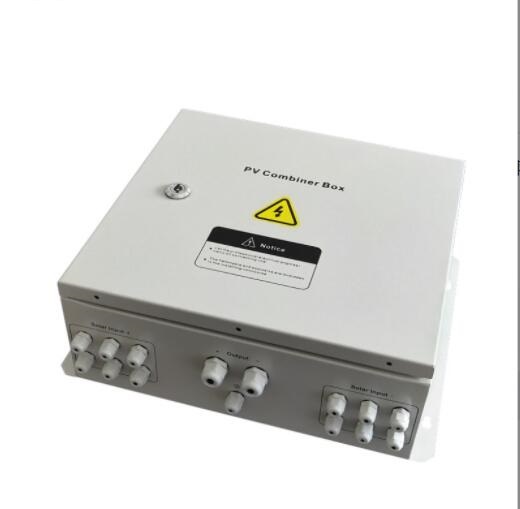

A photovoltaic combiner box or photovoltaic combiner box is an electrical enclosure that combines multiple DC (direct current) strings of solar panels into a single DC output. The combiner box contains fuses, switches, and surge protection devices to ensure the safety and reliability of the DC output of the solar panel. It is usually installed near the solar panel and is an important part of the solar power generation system. The purpose of the photovoltaic combiner box is to reduce the number of DC cables from the solar panel to the inverter, thus simplifying the installation and maintenance of the solar power generation system.
The main components of a typical photovoltaic combiner box include: 1. DC input terminals: These terminals are used to connect the DC output cables of the solar panel. 2. Surge protection devices: These protect against electrical surges and voltage spikes that can damage solar panels. 3. Fuses: These are electrical safety devices that protect circuits from overcurrent and short circuits. 4. Circuit breakers: These are electrical switches that automatically break the circuit when an abnormality is detected. 5. Bus bars: These are the conductive bars that connect the DC input terminals to the output cables. 6. Grounding system: This is the system to ground the combiner box to prevent electric shock. 7. Enclosure: This is the enclosure or cover of the combiner box that protects the internal components from environmental factors such as dust, moisture, and temperature. Overall, photovoltaic combiner boxes are key components of solar power generation systems, providing safety and reliability for electrical connections and ensuring efficient operation of the system.
